Device Mount
The Adjustable Surface-Clamping Articulated Phone (ASCAP) Mount is a proposed 3D printed product that features an adjustable device clamp, pivoting joints, and a clamp that tightens to flat surfaces. My responsibilities on the project included the design, 3D printing, and physical assembly of the product. The ASCAP Mount was printed on my QIDI TECH I dual-extrusion FDM 3D printer using PLA and TPU materials.

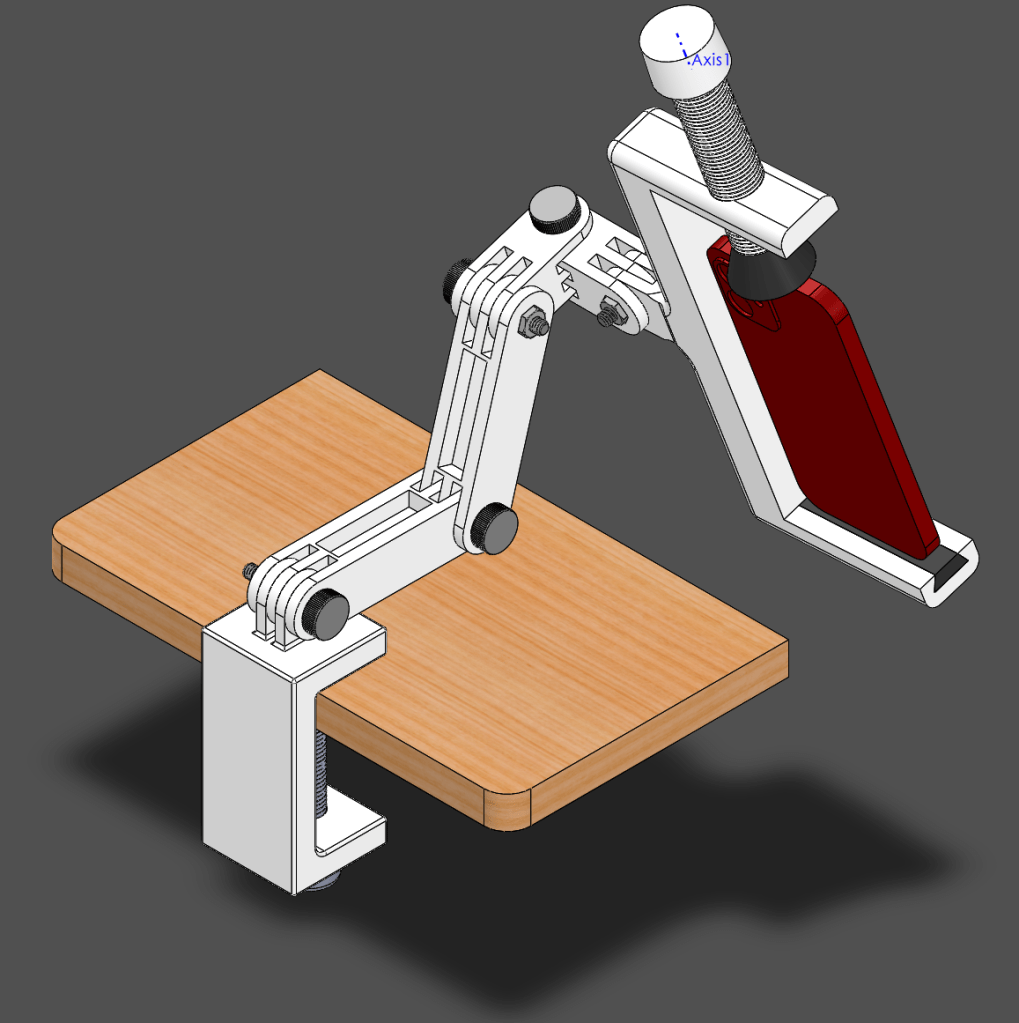

Anna Carlson and Chris Maciolek helped design the model and assembly in SolidWorks.

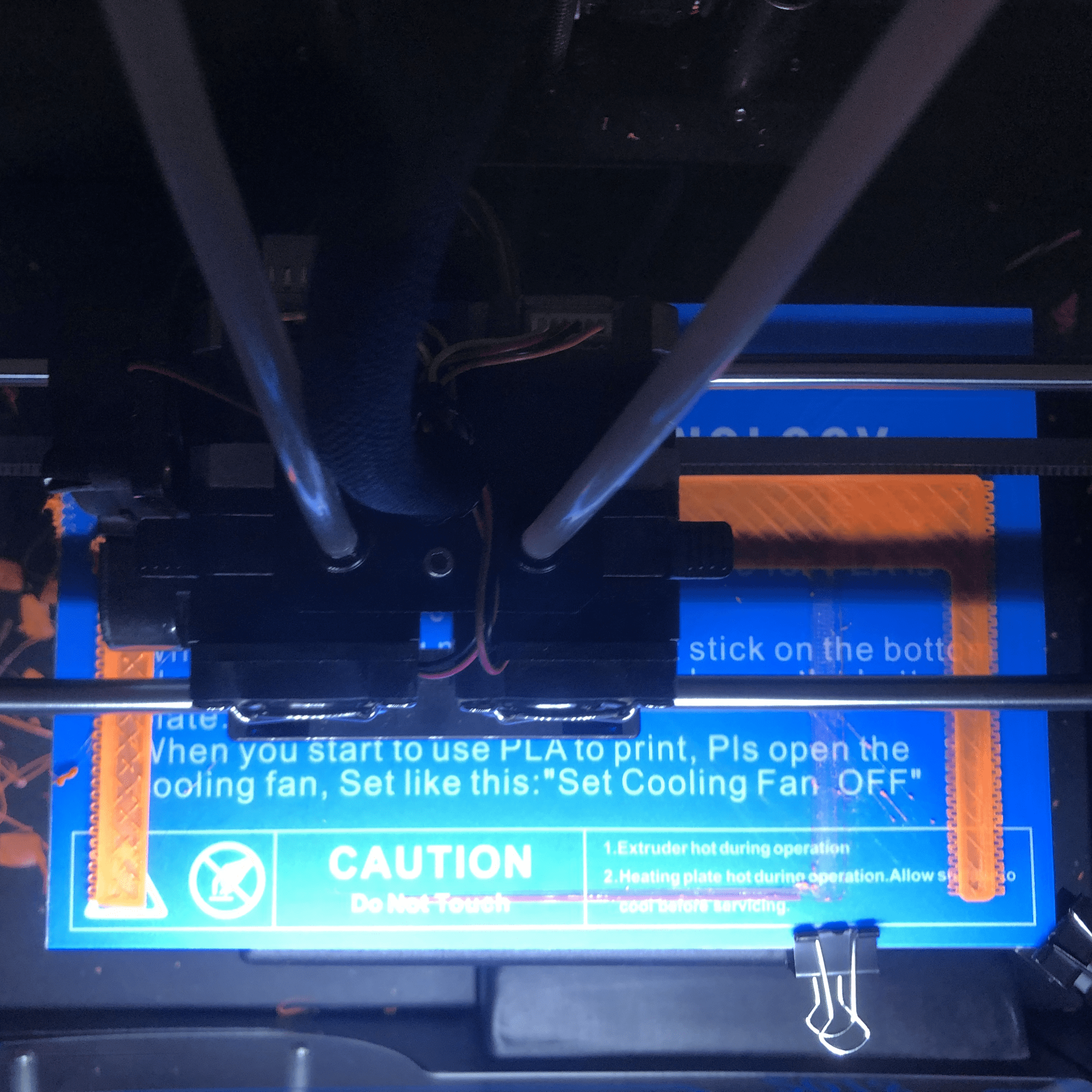

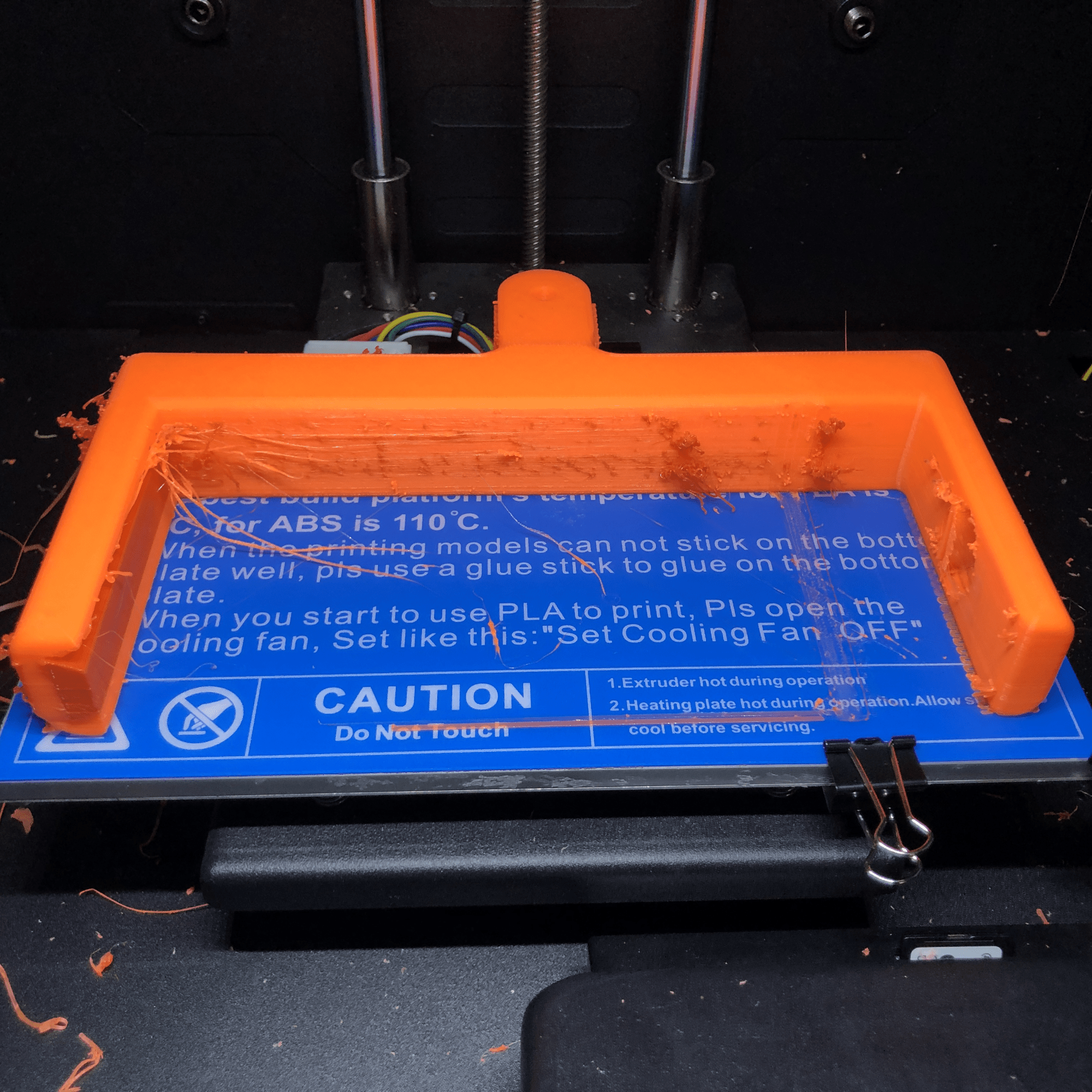

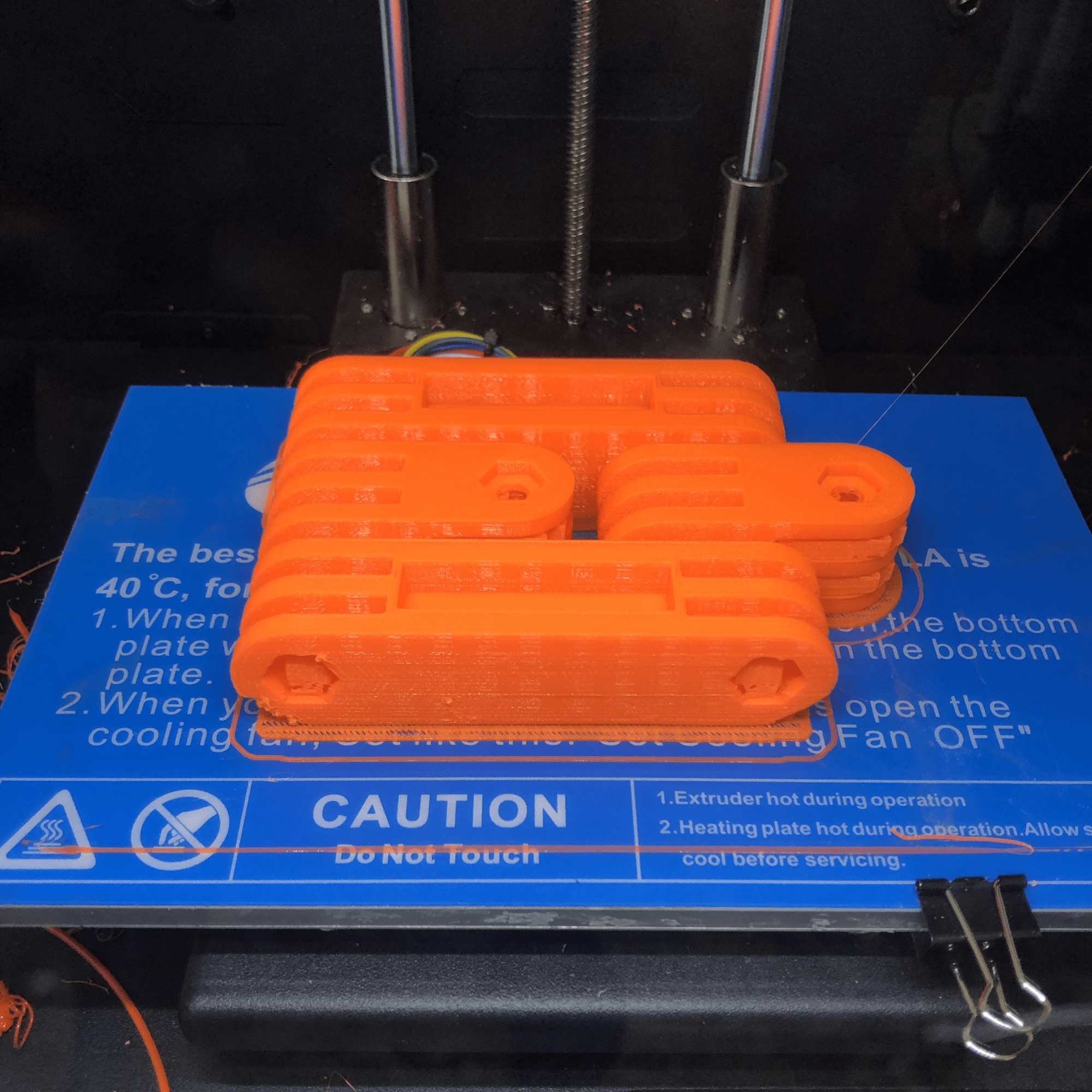

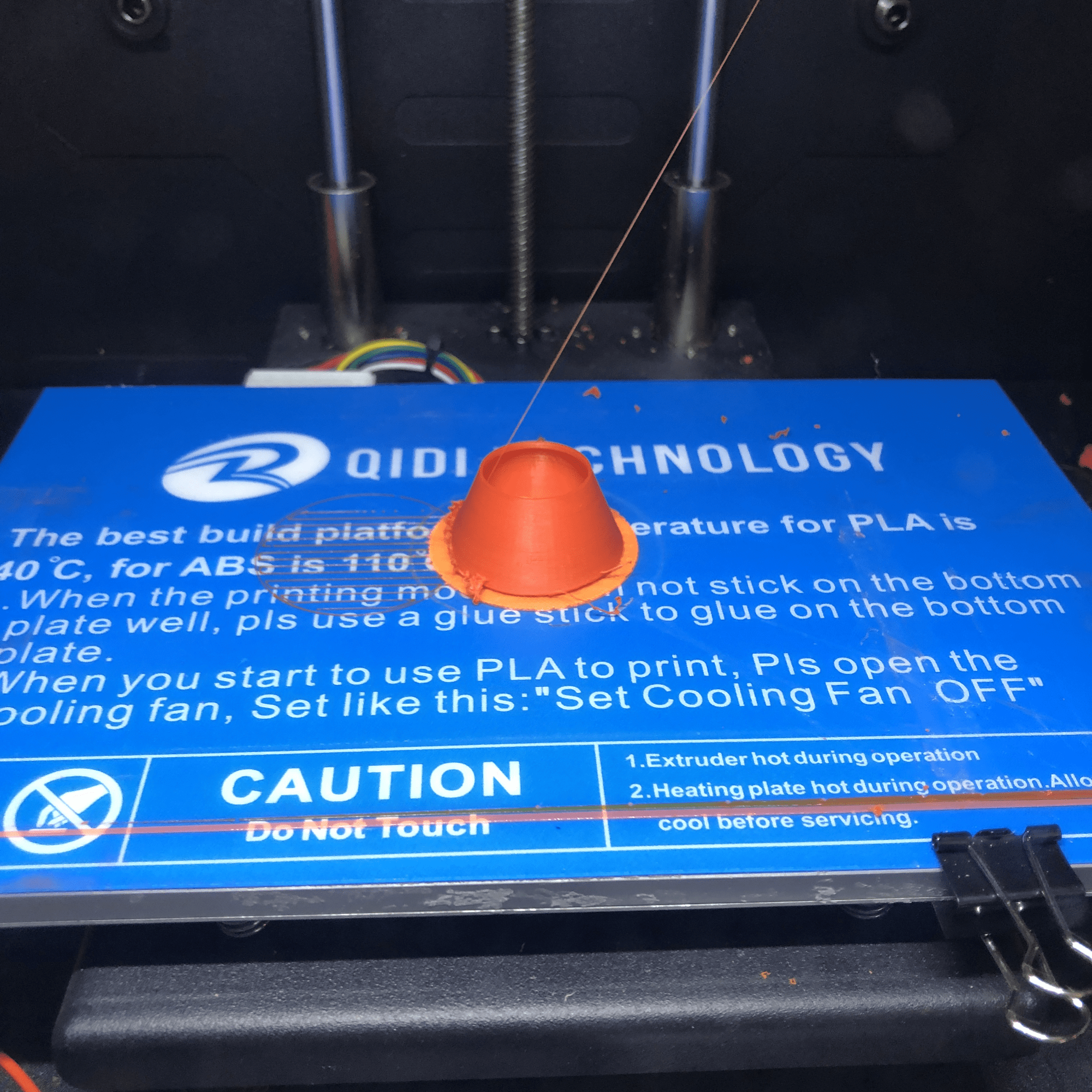

An ASCAP Mount being 3D-printed:

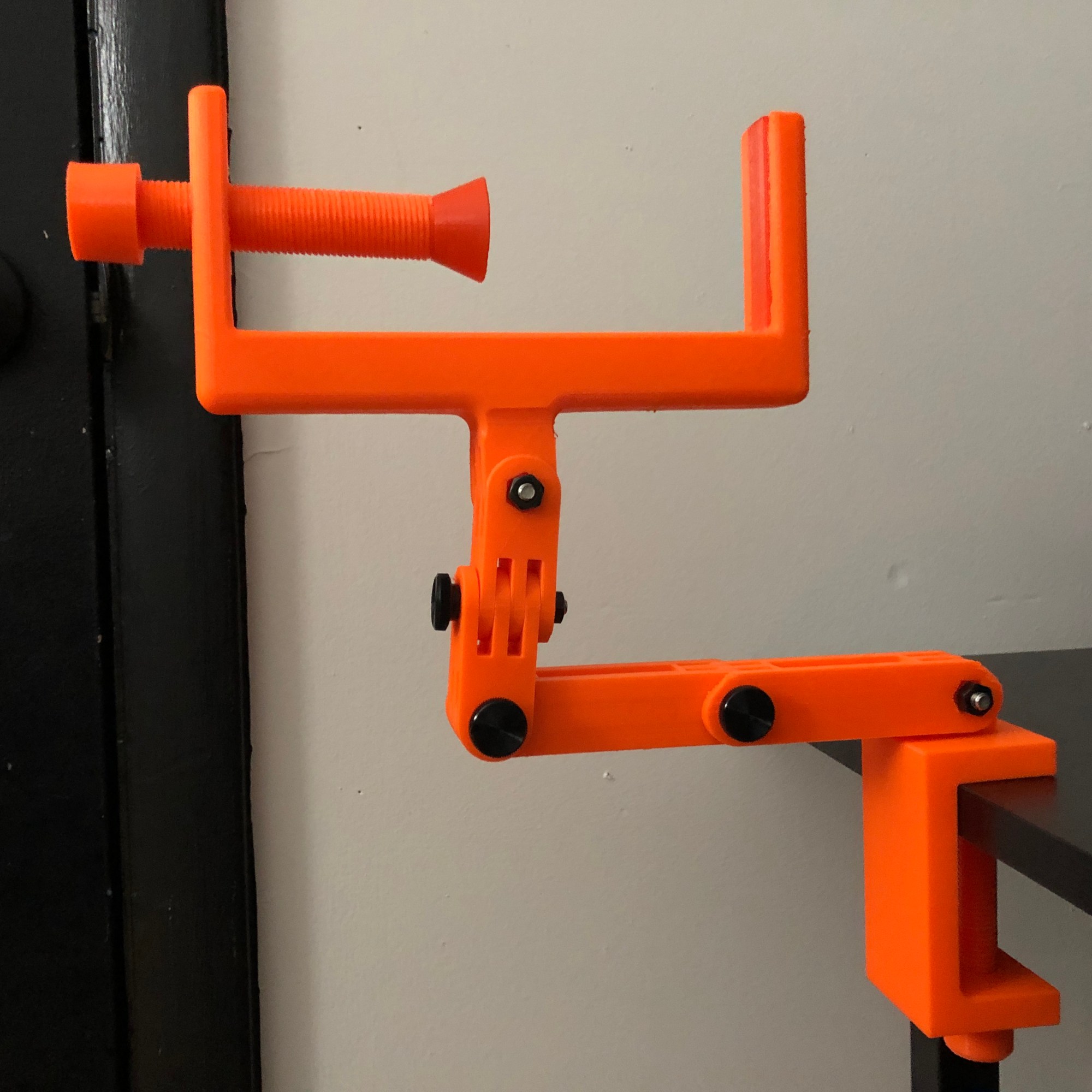

An assembled ASCAP Mount:

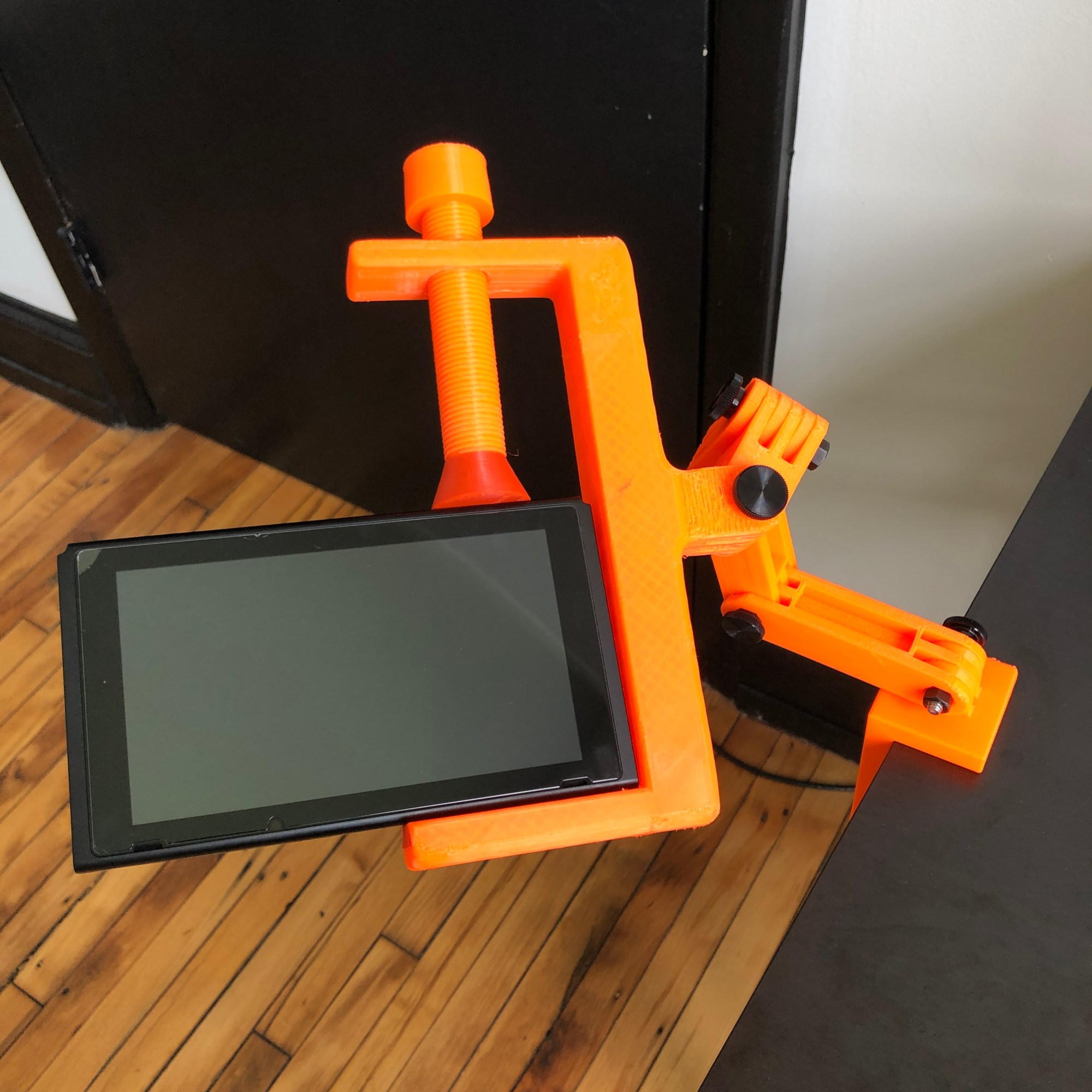

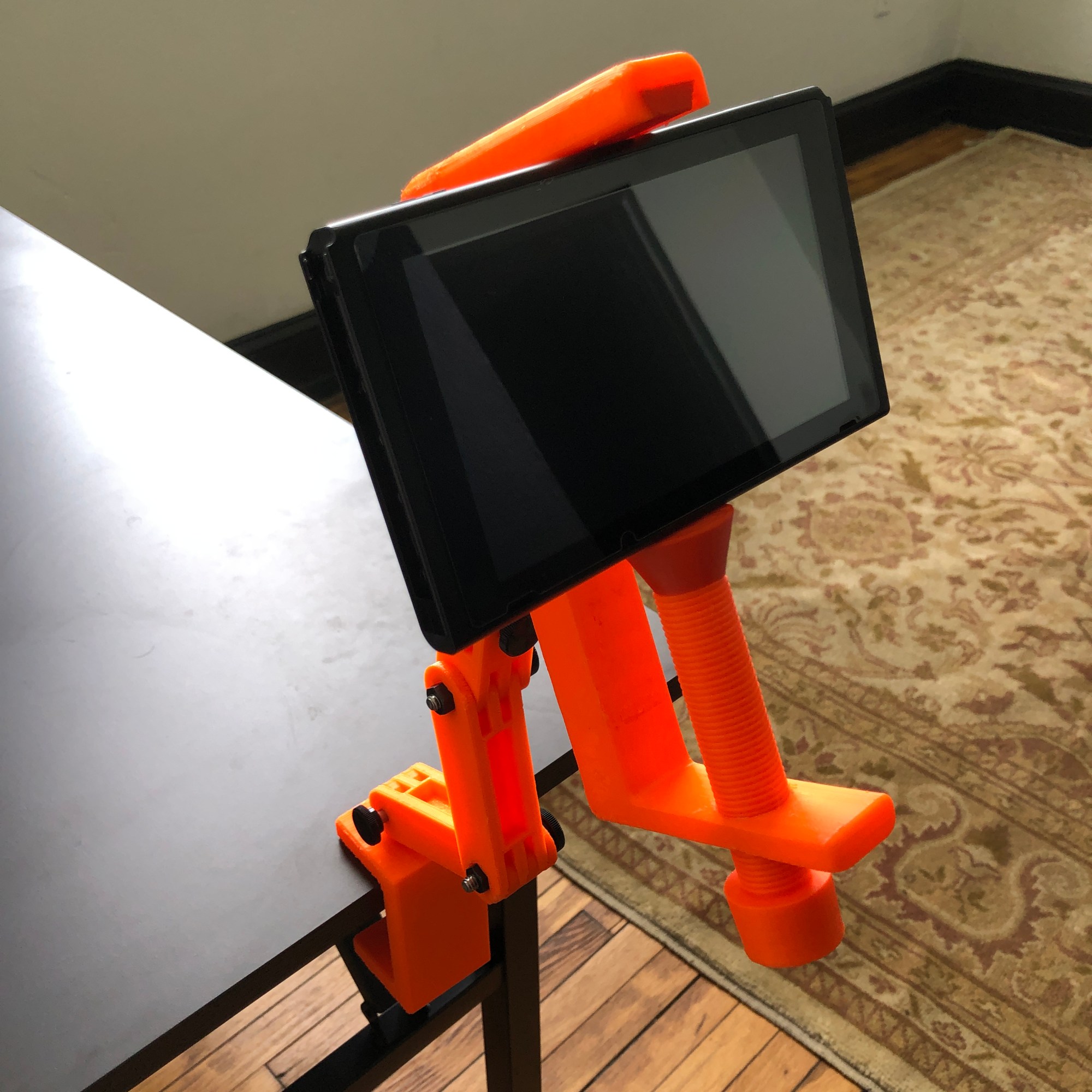

An ASCAP Mount holding a Nintendo Switch:
To emulate industry engineering documentation standards, our group constructed a detailed project plan and a Quality Function Deployment document for the ASCAP Mount:
